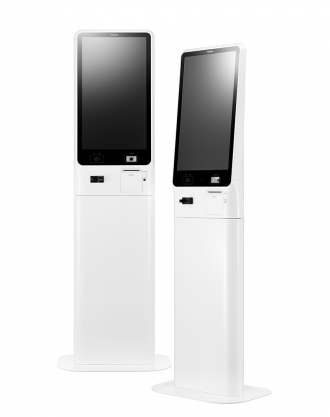

BIGPOS® At a Glance
| Processor |
Windows Android |
IIntel® Core™ i5-7200U (3M Cache, 2.50/3.10 GHz(Turbo), 2 Cores) Intel® Pentium® 4415U (2M Cache, 2.30 GHz, 2 Cores) Intel® Celeron® 3965U (2M Cache, 2.20 GHz, 2 Cores) Intel® Celeron® J1900 (2M Cache, 2.0/2.42 GHz(Burst), 4 Cores), Fanless Cortex™- A17 Quad-Core (Up to 1.8GHz ) |
| Chipset |
Windows |
7200U/4415U/3965U Intel® Kaby Lake J1900 Intel® Bay Trail |
| Memory |
Windows Android |
7200U/4415U/3965U 4GB Standard, DDR4 2133 MT/s, Socket 1 x SODIMM (Max. 16GB) J1900 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM 1GB Standard, DDR3L 1600 MT/s, On-board (Max. 2GB Optional) |
| Storage |
Windows Android |
7200U/4415U/3965U SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI J1900 SATA 2 (3Gb/s) 2.5 inch SSD 64GB, Support AHCI (Celeron) eMMC 8GB, On-board (Max. 64GB Optional) |
| OS |
Windows Android |
7200U/4415U/3965U Windows 10 IoT Enterprise J1900 Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7 Andoird 7.X (Nougat) |
| Audio | Windows Android |
Realtek ALC662-VD Realtek ALC5640 |
| Display | Type: 27″ TFT LCD, LED Backlight Resolution: 1080 x 1920 Brightness: 300 cd/m² (typ.) Touch Screen: Projective Capacitive Touch Response: 12 ms Contrast Ratio: 3000 (typ.) |
|
| LAN | 1 x Gigabit Ethernet, RJ-45 | |
| Power DC-IN | 1 x (3 Pin Connector) | |
| USB |
Windows Android |
7200U/4415U/3965U: 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 4) 3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45 J1900: 6 (Rear 2, Back 4, USB 2.0 x 6) 3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45 6 (Rear 2, Back 4, USB 2.0 x 6) 3 (Reserved for MSR, SCR/Touch Controller/Camera), RJ-45 |
| Serial Port | 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS, Reserved for NFC) (COM2~3 RJ-45 , Full Signal), Reserved for Cash Module) (COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved) (COM5 Reserved for Printer) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR, IC Card) |
|
| Power | Power Supply: Adaptor 24V, 6.35A | |
| Pedestal | Material: Galvanized Steel Plate Material Thickness: 1.2T Component Access: Security Locks with 7-Pin Tumbler / Rear Security Door |
|
| Physical & Environmental | Operating Temperature: 0 °C ~ 60 °C at 10% to 90% Humidity Storage Temperature: -20 °C ~ 80 °C at 10% to 90% Humidity Dimensions (W x H x D): System : 43 x 88 x 14 cm, 16.9 x 34.6 x 5.5 in Pedestal : 43 x 87 x 14 cm, 16.9 x 34.2 x 5.5 in Baseplate : 60 x 1 x 45cm, 23.6 x 0.39 x 17.7 in Packing Dimension (W x H x D): System : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in Pedestal : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in Baseplate : 63 x 6 x 48cm, 24.8 x 2.4 x 18.9 in Net Weight: System : 15 kg, 33.0 lb Pedestal : 13 kg, 28.6 lb Baseplate : 20 kg, 44.1 lb Packing Weight: System : 21kg, 46.3 lb Pedestal : 17kg, 37.5 lb Baseplate : 21kg, 46.3 lb Certification: CE, FCC, KC Color: High Gloss White, High Gloss Black, Custom Colors Available |
|
| Options & Peripherals |
Windows |
Storage: 2.5 inch SSD 128GB, HDD 500GB, 1TB Built-in Printer : 3″ Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB) Barcode Scanner: 1D, 2D Barcode Camera: 2M USB Interface (Internal) (Factory Option) Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track Smart Card Reader: EMV Level 1, 2 NFC Reader: MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 Wall Mount Kit: VESA-Compatible, 100 x 100 mm, 200 x 200 mm Speaker: 2 x 5W (Stereo) (Factory Option) Wifi: Mini PCIe for Wireless LAN (Core/Pentium) │ USB Dongle (Celeron) On Board (Factory Option) Custom Options: Customer-Assigned EMV Terminal Bracket, Bill/Coin Acceptor, Document Reader(Passports/IDs), Ticket/Document Printer, UPS (Uninterruptible Power Supply) |
