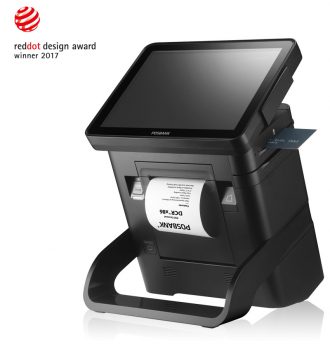

■レシートプリンタ内蔵のコンパクトＰＯＳ
Design
Groundbreaking
All-in-One Design.
Performance
Powerful Performance.
Peripheral
Multiple Peripheral Devices.
| Processor | Intel® Celeron® J1900 (2.0 GHz) Quad-Core Processor, Fanless Intel® Celeron® J1800 (2.41 GHz) Dual-Core Processor, Fanless |
|
| Memory | 2GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM | |
| Storage | m-SATA (3Gb/s) SSD 64GB, Support AHCI | |
| OS | Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7 | |
| Printer | 3″ Jam-Free Thermal, 200~250mm/s, Auto Cutter (Interface : Serial, USB), Built-in Type | |
| Display | Type: 8” Wide TFT LCD, LED Backlight ㅣ 9.7″ TFT LCD, LED Backlight Resolution: 8” 1024 x 600 ㅣ 9.7″ 1024 x 768 Brightness: 8” 500 cd/m² ㅣ 9.7″ 300 cd/m² Touch Screen: Projected Capacitive Touch |
|
| Interface | USB: 4 (Rear 4, USB 2.0 x 2, USB 3.0 x 2) Serial: 6 (COM 1~2 with 5V/12V Power Output on 9 Pins, Jumper) (COM3 with 5V/12V Power Output on 9 Pins, BIOS) (COM4 Only TX/RX, 12V Power Output, Reserved for CDP) (COM5 Reserved for Printer) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR) LAN: 1 x Gigabit Ethernet Cash Drawer Port: 1 Power DC-IN: 1 x (3 Pin Connector) PS/2: 1 (Reserved for Keyboard or Mouse) Audio: 1 x Line-out, 1 x Mic-in Display: 1 x VGA (With Power Output) |
|
| Power Supply | Adaptor 24V, 2A | |
| Physical & Environmental | Operating Temperature: 0 ℃ ~ 60 ℃ at 10% to 90% Humidity Storage Temperature: -20 ℃ ~ 80 ℃ at 10% to 90% Humidity Dimensions (W x H x D): 8” 216 x 278.9 x 255.3(mm), 8.5 x 10.9 x 10.1(in) ㅣ 9.7″ 238.6 x 293.5 x 255.3(mm), 9.4 x 11.6 x 10.1(in) Packing Dimension (W x H x D): 8” 360 x 390 x 295(mm), 14.2 x 15.3 x 11.6(in) ㅣ 9.7″ 360 x 390 x 295(mm), 14.2 x 15.3 x 11.6(in) New Weight: 8” 3,000g, 6.6lbsㅣ9.7″ 3,700g, 8.2lbs Packing Weight: 8” 4,200g, 9.3 lbsㅣ9.7″ 5,400g, 11.9lbs Certification: CE, FCC, KC Color: Matte Black, High Gloss White |
|
| Options & Peripherals | Customer Display: VFD 20 Columns x 2 Lines (Factory Option) Magnetic Stripe Reader: Comply with ISO 7811, Support 1 & 2 & 3 Track (Factory Option) Smart Card Reader: EMV Level 1, 2 (Factory Option) SD Card Reader: Yes Wifi: Mini PCIe for Wireless LAN |
